घुमावदार ताला नियंत्रण केबल सिर कोटिंग कार्बन स्टील ताला धक्का खींचें केबल सिर

1 टुकड़ा
MOQ
बातचीत योग्य
कीमत
घुमावदार ताला नियंत्रण केबल सिर कोटिंग कार्बन स्टील ताला धक्का खींचें केबल सिर
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
नाम: यूनिवर्सल लॉकिंग चोक केबल
अनुप्रयोग: इंजन बंद
भार: 100lb अधिकतम
यात्रा: 3.00" अधिकतम
सामग्री: प्लेटेड कार्बन स्टील संक्षारण-रोधी नियंत्रण हेड
पैकेट: लकड़ी का केस/दफ़्ती/बबल फिल्म
प्रमुखता देना:

पुश पुल कंट्रोल केबल

,

औद्योगिक नियंत्रण केबल

मूलभूत जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Phidix
प्रमाणन: IATF16949
मॉडल संख्या: अनुकूलित
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: गत्ते का डिब्बा या लकड़ी का मामला
प्रसव के समय: 7 - 40 कार्य दिवस
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी
आपूर्ति की क्षमता: 888 पीस/पीस प्रति माह
उत्पाद विवरण

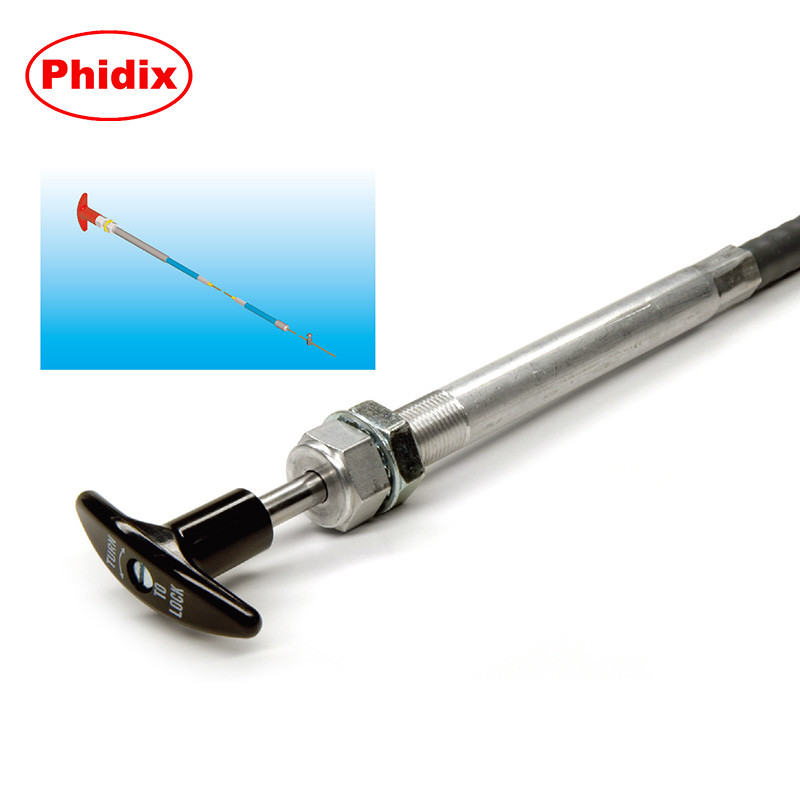

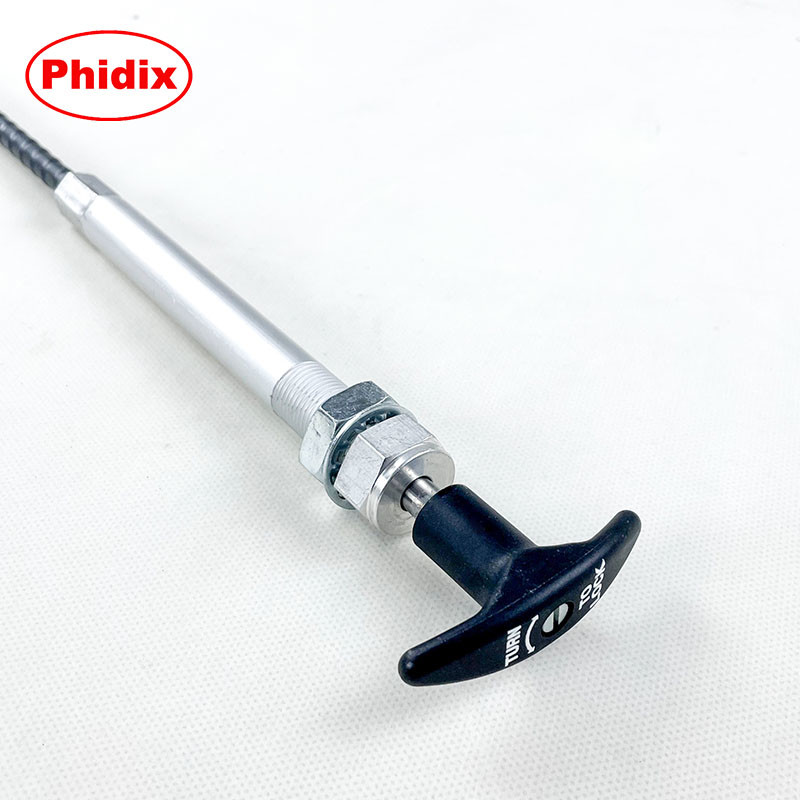

The Twist-Lock Cable End Fitting by Phidix is a precision-engineered control head designed to provide manual locking functionality for push-pull control systems. Used as a modular cable-end component, it ensures the operator can lock a mechanical setting in place via a secure quarter-turn T-handle—ideal for applications requiring vibration resistance, position security, and safety compliance.

As a standalone end fitting, this product is widely compatible with custom-built or replaceable cable assemblies, especially in PTO engagement, throttle control, and engine shut-off mechanisms across industrial, automotive, marine, and off-road sectors.


Key Features

•  Quarter-Turn Locking: Securely locks cable position against vibration and operator disturbance.

•  Threaded Panel Mount: Allows easy installation on control panels or brackets.

•  Robust Construction: Carbon steel housing with optional plating for corrosion resistance.

•  T-Handle Interface: Ergonomic grip with mechanical feedback for locking confirmation.

•  Color Variants Available: Optional black or red handles for function differentiation (e.g. stop, choke, PTO).

•  Versatile Cable Compatibility: Can be used with standard or custom push-pull cable cores.

Looking for complete cable assemblies? Visit our Twist-Lock Cable Assembly Main Page

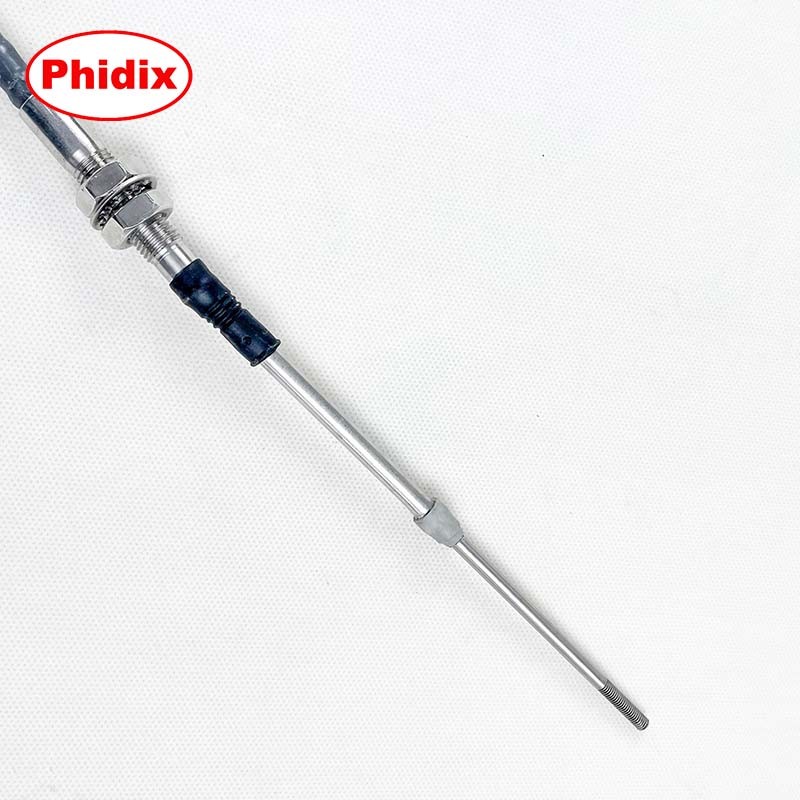

Output End Options

To adapt to various mechanical linkages, Phidix Twist-Lock cable heads support the following output end types:

Output Type Description
Threaded Rod Common in throttle and brake linkages
Grooved Pin Fits clevis or snap-clip connections
U-Fork For fast coupling with lever or valve arms

Custom output end configurations available upon request.

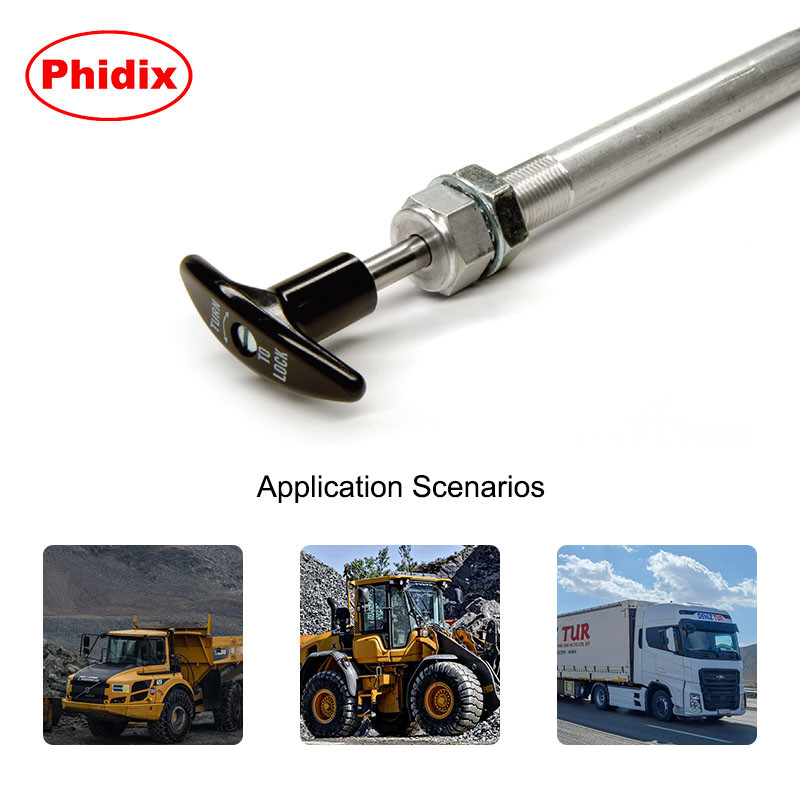

Typical Applications

This Twist-Lock cable head is designed for systems where manual locking, operator control, and vibration resistance are critical. Use cases include:

•  Throttle lock for diesel and gasoline engines

•  Choke cable for marine vessels or cold start

•  PTO engagement/disengagement on tractors or utility vehicles

•  Fuel shut-off and emergency stop cables

•  Manual valve actuation in industrial equipment

Also available as a replacement part for existing cable systems.

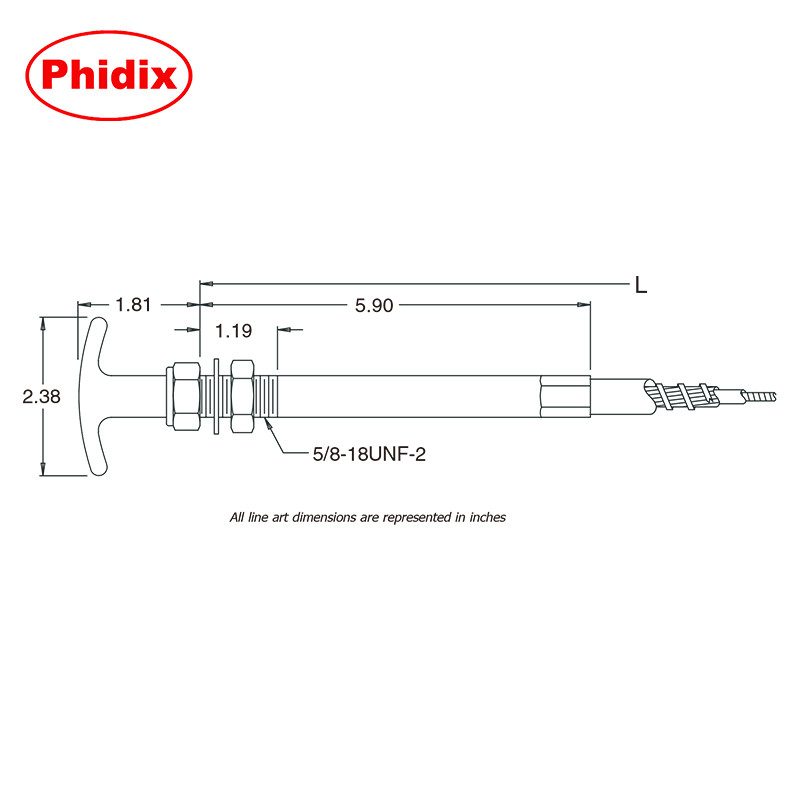

Engineering Specification

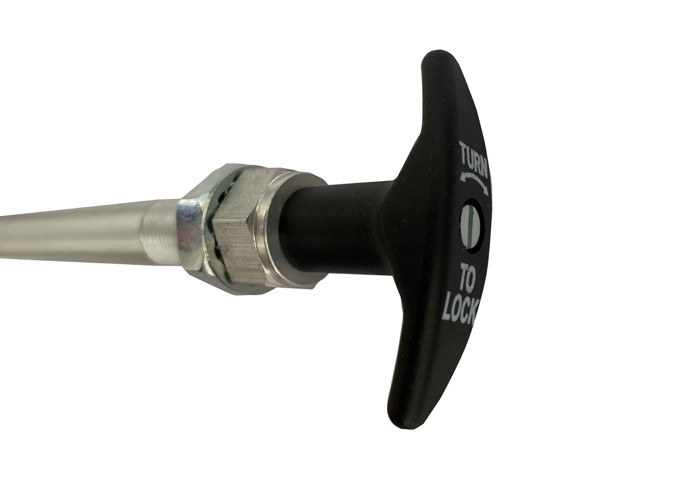

•  Handle Style: T-handle, twist-to-lock

•  Housing Material: Plated or uncoated carbon steel (customizable)

•  Mount Type: Threaded nut front-mount

•  Compatible Cable Size: 0.090–0.125 inch core (standard); others available

•  Operating Temp Range: -20°C to +120°C

•  Locking Load Capacity: ≥ 100 lbs static hold (varies by core & mount)


Integration & Replacement

This Twist-Lock control head can be used in:

•  New cable assemblies as an OEM-selected end fitting

•  Retrofit replacement of worn or non-locking cable heads

•  Custom throttle/choke builds in industrial engine control systems

Phidix can supply:

•  Just the end head

•  End head + inner cable

•  Full assembly including casing, inner core, and terminations

Explore more on Twist-Lock Cable Head Design Details
