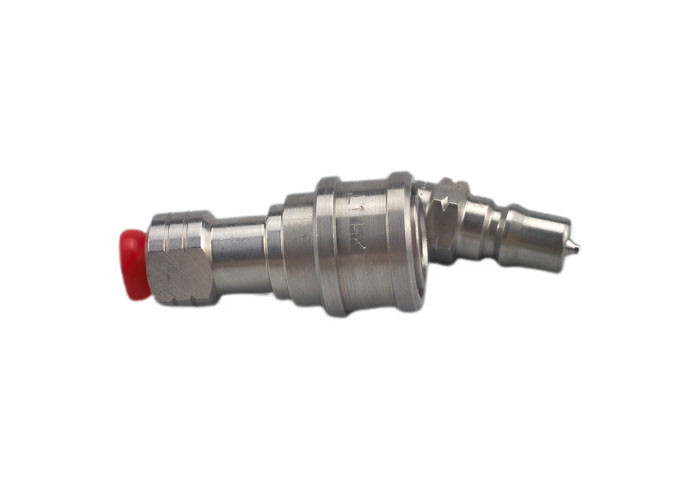

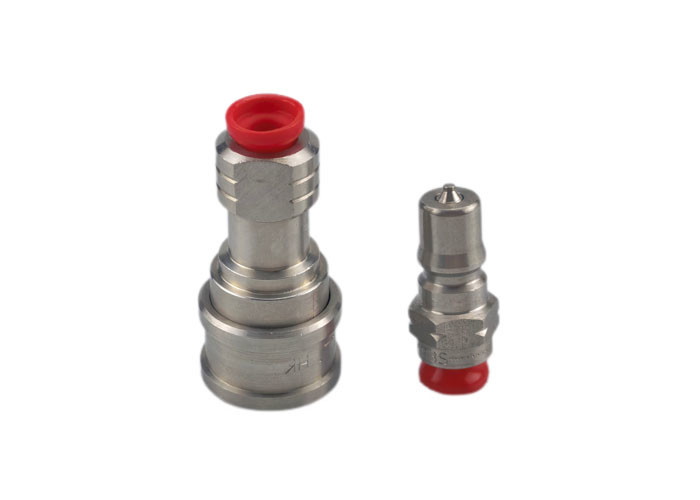

1' सीबी-1 श्रृंखला स्टेनलेस स्टील 316 बंद प्रकार हाइड्रोलिक त्वरित युग्मन
हाइड्रोलिक त्वरित युग्मक लीक क्यों होते हैं?
मानक सामग्री
विशेषताएं
| शरीर का आकार | पार्टनर। | धागा | ए | बी | फ्लैट्स के पार |
| 1/8" | CB-S1L-1FG/CB-S1M-1FG | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/8" | CB-S1L-1FN/CB-S1M-1FN | 1/8-27 | 1.91 | 0.98 | 0.56 |
| चौथाई" | CB-S2L-1FG/CB-S2M-1FG | 4/1-19 | 2.26 | 1.17 | 0.75 |
| चौथाई" | CB-S2L-1FN/CB-S2M-1FN | 4/1-18 | 2.26 | 1.17 | 0.75 |
| 3/8" | CB-S3L-1FG/CB-S3M-1FG | 3/8-19 | 2.56 | 1.42 | 0.88 |
| 3/8" | CB-S3L-1FN/CB-S3M-1FN | 3/8-18 | 2.56 | 1.42 | 0.88 |
| 1/2" | CB-S4L-1FG/CB-S4M-1FG | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 1/2" | CB-S4L-1FN/CB-S4M-1FN | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 3/4" | CB-S6L-1FG/CB-S6M-1FG | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 3/4" | CB-S6L-1FN/CB-S6M-1FN | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 1" | CB-S8L-1FG/CB-S8M-1FG | 1-11 | 4.13 | 2.61 | 1.75 |
| 1" | CB-S8L-1FN/CB-S8M-1FN | 1-11 | 4.13 | 2.61 | 1.75 |
| शरीर का आकार | पार्टनर। | धागा | सी | D | ई | HEX |
| 1/8" | CB-P1L-1FG/ CB-P1M-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/8" | CB-P1L-1FG/ CB-P1M-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| चौथाई" | CB-P2L-1FG/ CB-P2M-1FG | 4/1-19 | 1.52 | 0.87 | 0.56 | 0.75 |
| चौथाई" | CB-P2L-1FN/ CB-P2M-1FN | 4/1-18 | 1.52 | 0.87 | 0.56 | 0.75 |
| 3/8" | CB-P3L-1FG/ CB-P3M-1FG | 3/8-19 | 1.76 | 1.01 | 0.61 | 0.88 |
| 3/8" | CB-P3L-1FN/ CB-P3M-1FN | 3/8-18 | 1.76 | 1.01 | 0.61 | 0.88 |
| 1/2" | CB-P4L-1FG/ CB-P4M-1FG | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 1/2" | CB-P4L-1FN/ CB-P4M-1FN | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 3/4" | CB-P6L-1FG/ CB-P6M-1FG | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 3/4" | CB-P6L-1FN/ CB-P6M-1FN | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 1" | CB-P8L-1FG/ CB-P8M-1FG | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
| 1" | CB-P8L-1FN/ CB-P8M-1FN | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
