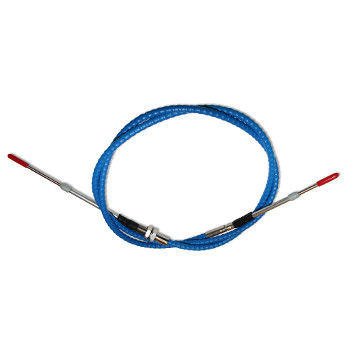

Engineered for the most demanding applications, the Blue Max™ push-pull control cable delivers exceptional performance in routing-limited, high-temperature, and corrosive environments. With its ultra-flexible 4" minimum bend radius and low-friction PTFE lining, it enables smooth and reliable motion control where traditional cables fail.
Whether you're integrating into off-highway machinery, marine controls, or military-grade equipment, Blue Max™ ensures consistent motion, reduced backlash, and maximum service life — even under heavy load and extreme routing complexity.
| Feature | Description |
|---|---|
| Min. Bend Radius | 4" (100mm) – Allows tight, multi-plane routing |
| Travel Capacity | 3" (76mm) push-pull stroke |
| Low-Friction Liner | PTFE – For smoother actuation & reduced wear |
| Outer Jacket | LDPE or Nylon 12 – For abrasion, UV & chemical resistance |
| Temperature Range | -65°F to +300°F (-54°C to +149°C) |

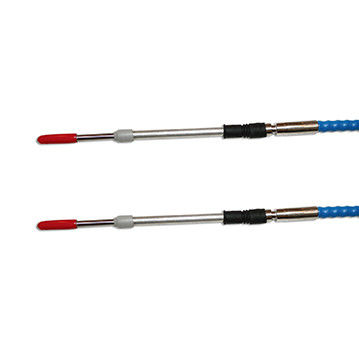

| End Fittings | Fully customizable – Swaged, threaded, clevis, bulkhead, etc. |
| Core Options | Solid wire or 1x19/7x7 strands available per load/flex need |
| Jacket Color | Signature Blue or Black (standard); other colors available on request |
| Branding | Phidix logo embossed for authenticity |
The Blue Max™ control cable uses a stainless steel stranded core matched to its 3" stroke and 4" bend radius. The core slides within a PTFE liner, ensuring low-friction and extended service life under tight routing conditions.
Depending on application load and motion type, other strand constructions (e.g., solid wire or multi-strand) may be offered as part of OEM customization.
• Custom Control Cable Design for OEMs
• Push-Pull Inner Wire Core Options
• PTFE-Lined Cable Structures Explained
• Application Guide: Marine Throttle Systems
Not sure if Blue Max™ is the right cable for your system?
Send us your cable routing layout, load profile, and environment—we’ll help you validate selection and recommend best-matched specs.
